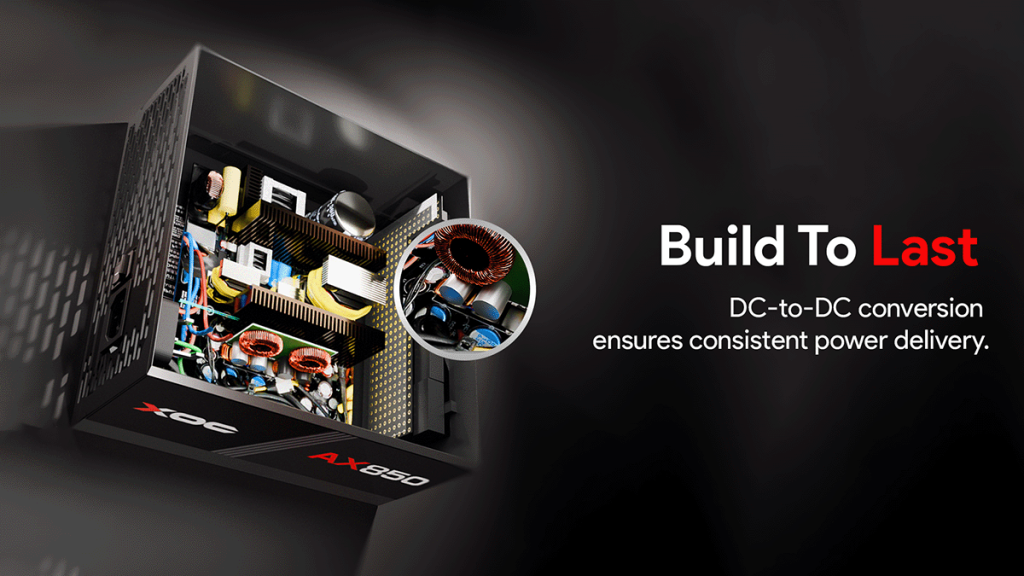

Built to Last
Apex by XOC is a testament to durability. Built with high-quality components, including premium Japanese capacitors, it ensures stability and longevity. The robust construction, coupled with effective heat dissipation, contributes to reliable, long-lasting operation. XOC Apex PSUs undergo rigorous testing in diverse conditions, ensuring reliability. With an industry-leading warranty, it stands as a dominant maker of high quality power supplies.

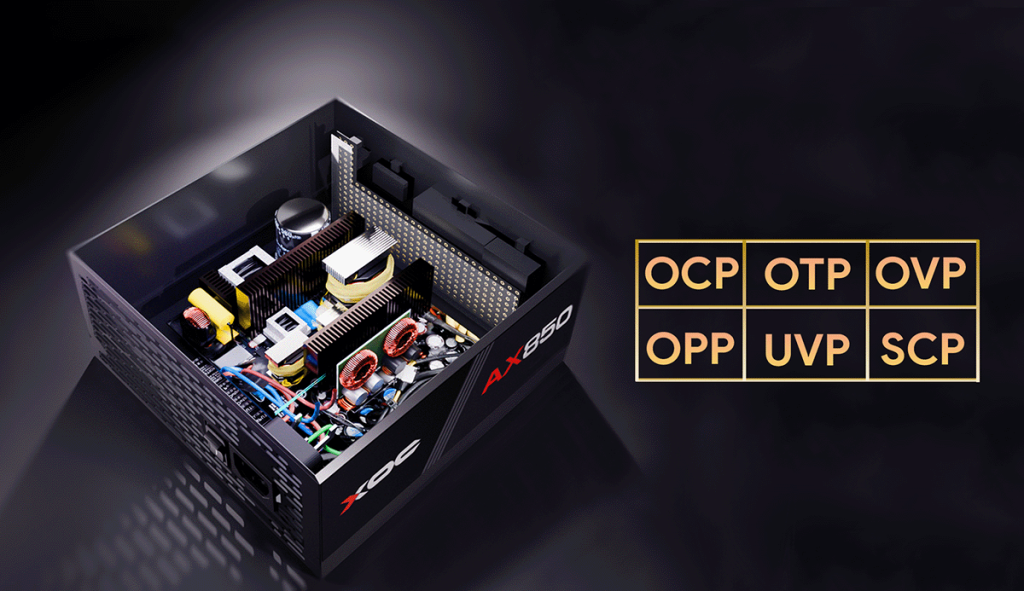

Apex Series Protects your PC
The Apex series from XOC prioritizes your PC’s safety with advanced protective features. Guarding against overvoltage(OV), overcurrent(OC), overpower (OP), short circuits(SC), and undervoltage(UV), this PSU ensures stable power delivery. The Over Temperature Protection monitors and adjusts fan speed, preventing overheating. Trust Apex to safeguard your components, and provide stable power for your PC over long and extended use.

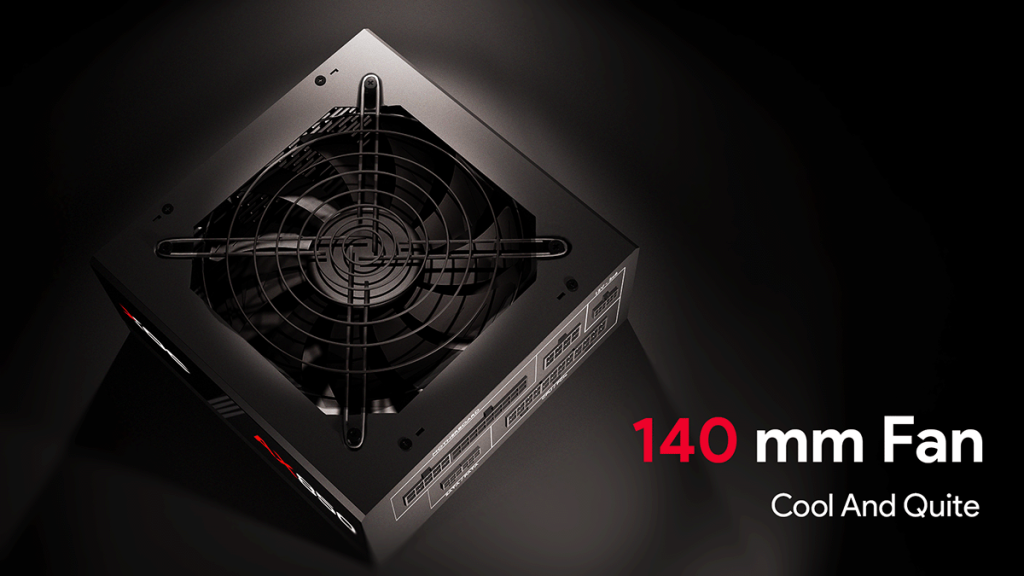

Cool and Quiet
Experience an optimal balance of cooling efficiency and noise reduction with the Apex series from XOC. The temperature-controlled fan system adjusts speed based on internal and system temperatures, ensuring effective cooling without unnecessary noise. A specially designed large-diameter fan enhances airflow quietly, and users can choose between automatic or manual fan control, tailoring the cooling and noise levels to their preferences.
80+ Bronze
The XOC Apex series is equipped with an 80+ Bronze certification, proving its commitment to providing a reliable power supply while maintaining efficiency standards. This certification signifies a balanced approach to energy efficiency, offering a reasonable level of performance without sacrificing environmental considerations. By reducing waste heat and electricity consumption, the Apex series addresses power needs responsibly, making it a suitable choice for users seeking a pragmatic blend of performance and energy consciousness.

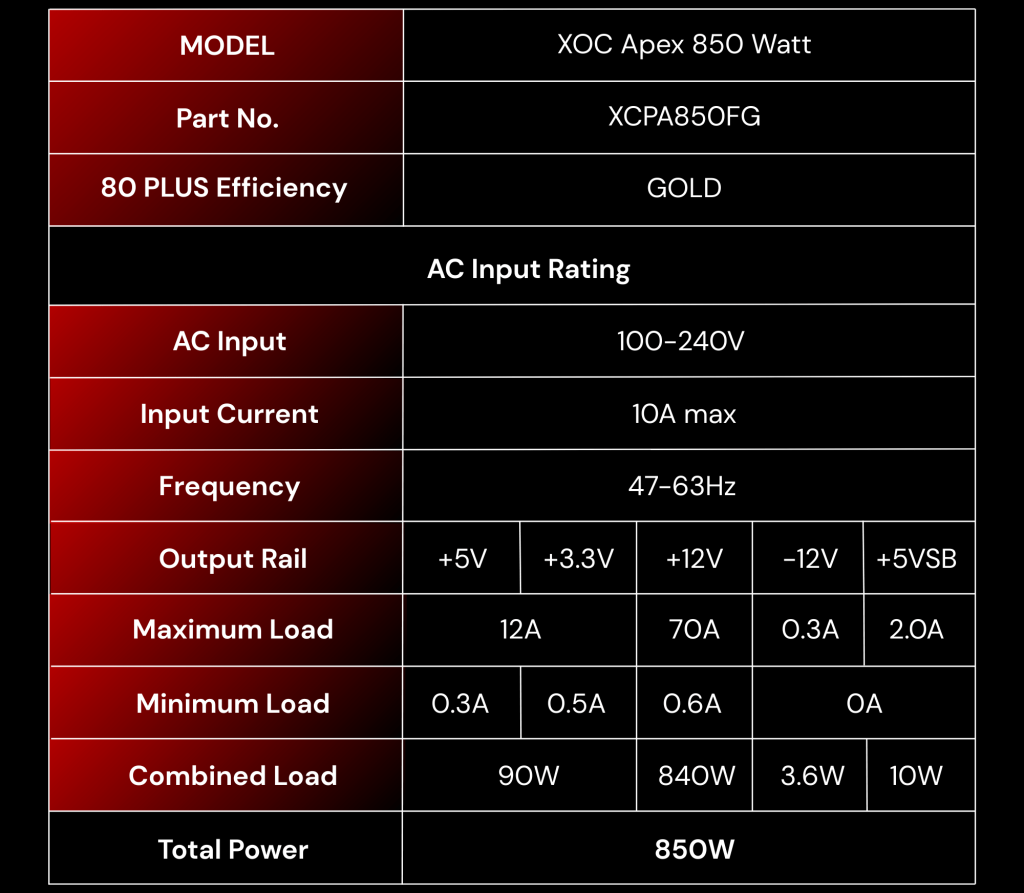

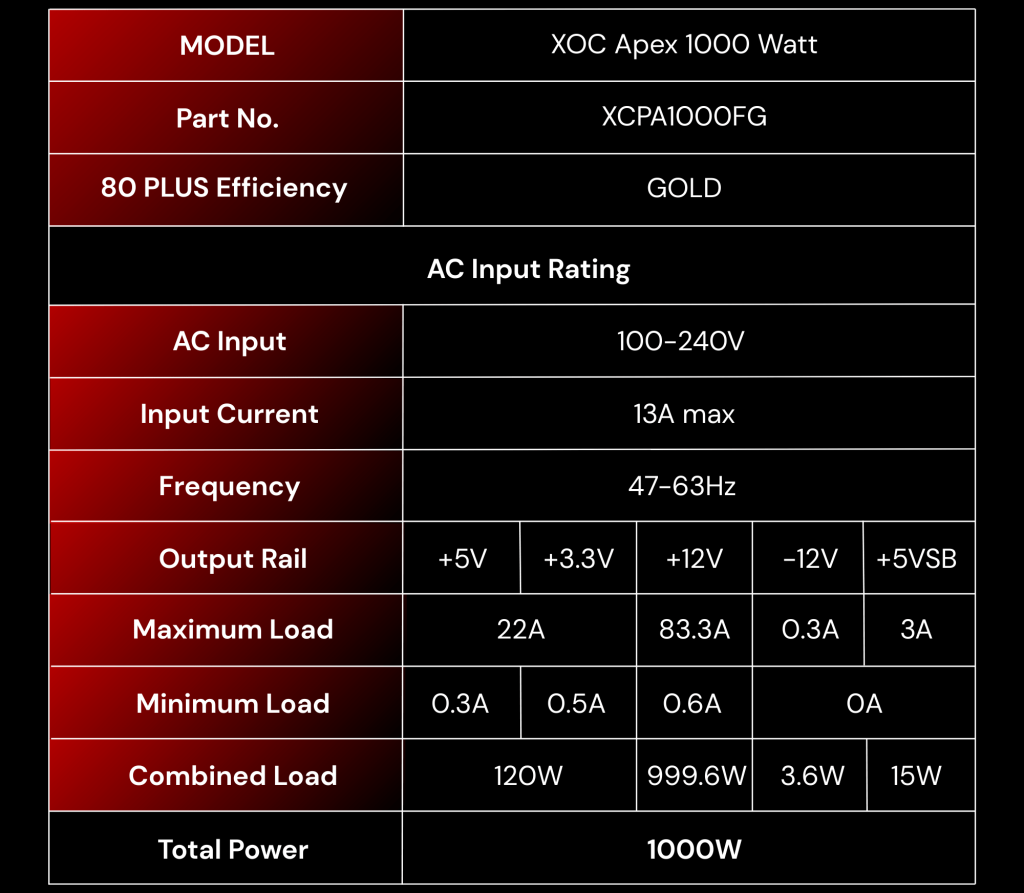

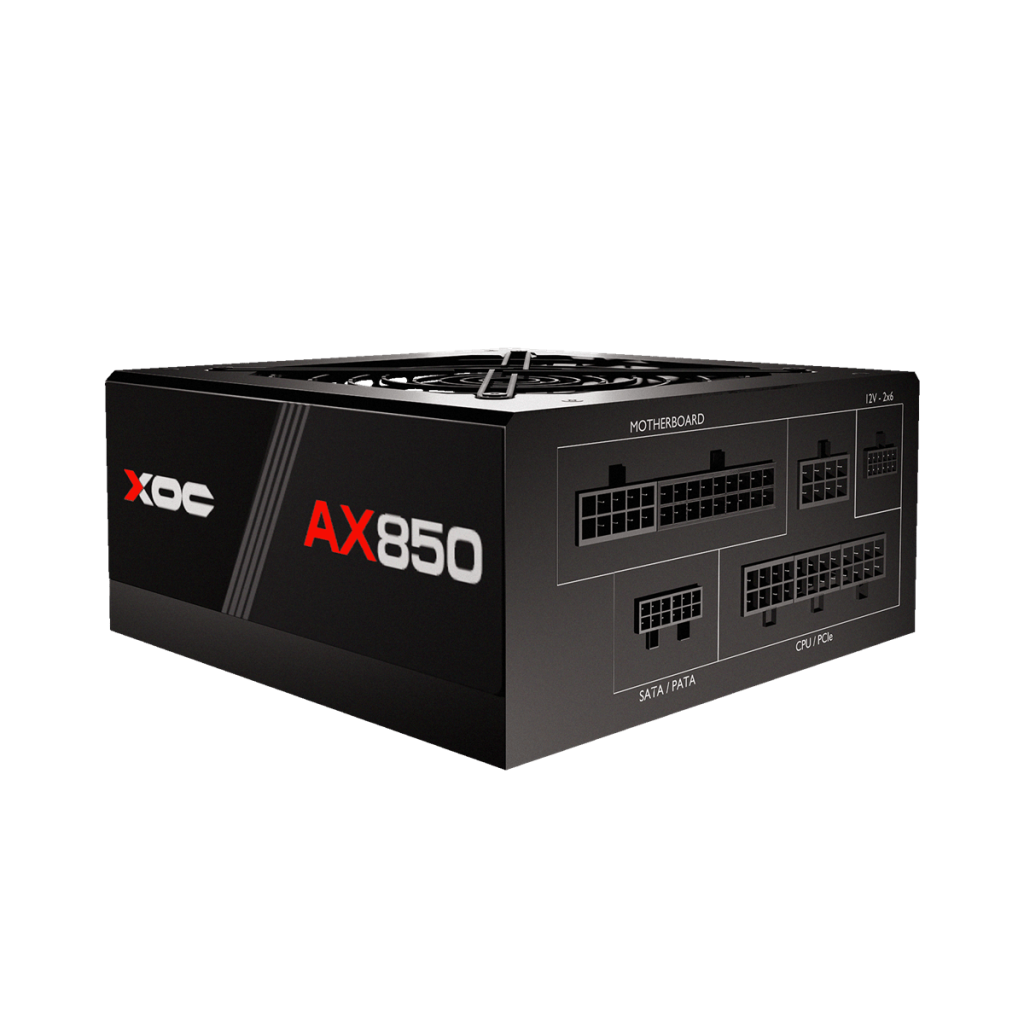

Specifications of XOC Apex Series
Model
XOC Apex Series
Type
ATX 12V 2.4
Dimension
140(L)*150(W)*86(H)
Modular
Full Modular
Wattage
650 Watt, 750 Watt, 850 Watt, 1000 Watt, 1200 Watt
Input Frequency Range
60Hz-50Hz
PFC
Active PFC
Input Voltage
100V-240V
Input Current
15A-7.5A
Power Signal
100-150ms
Safety
OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO
Fan
125 mm

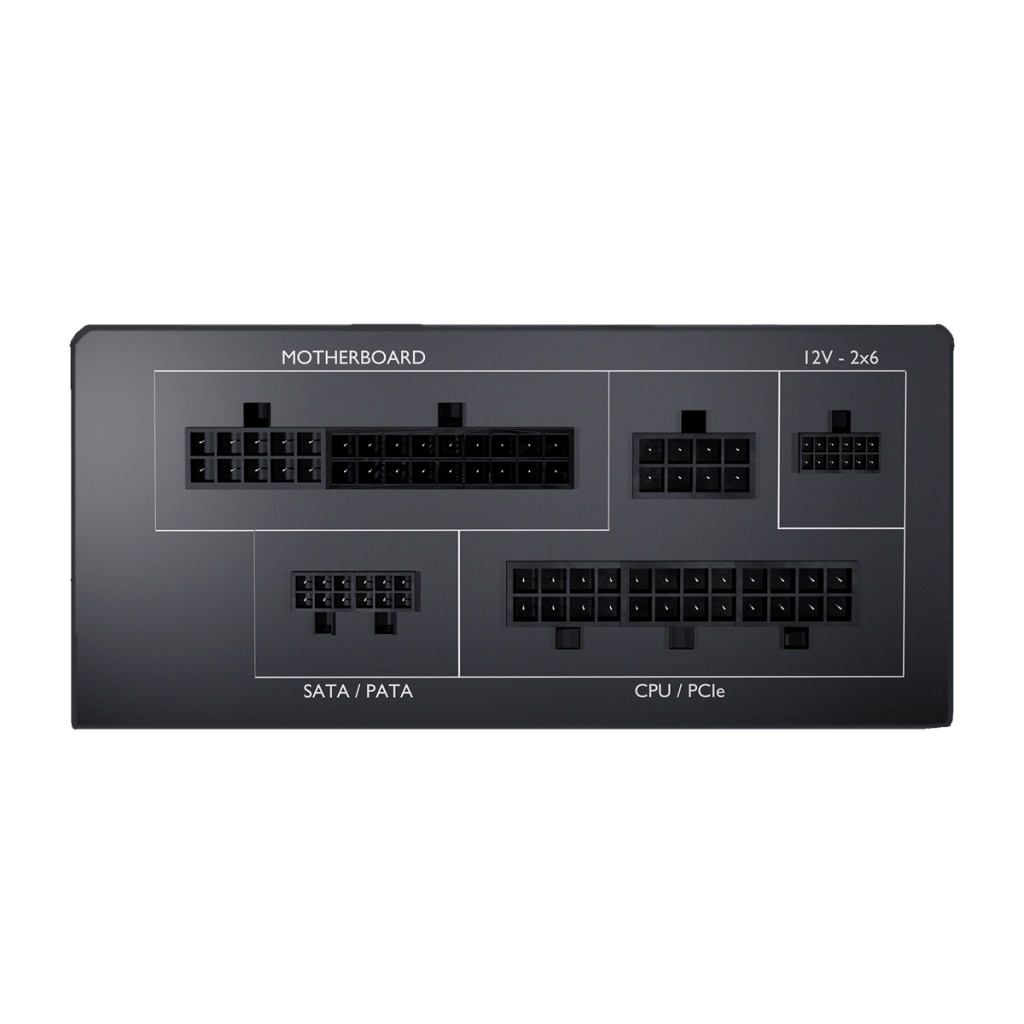

Connectors
ATX 24 PIN x 1
EPS 4+4 PINx 1
EPS 8 PIN x 1
PCIe 6+2 PIN x 6
SATA x 3
SATA x 1
Peripheral 4 PIN x 2
1
1
1
12
12
4
8
Connectors
